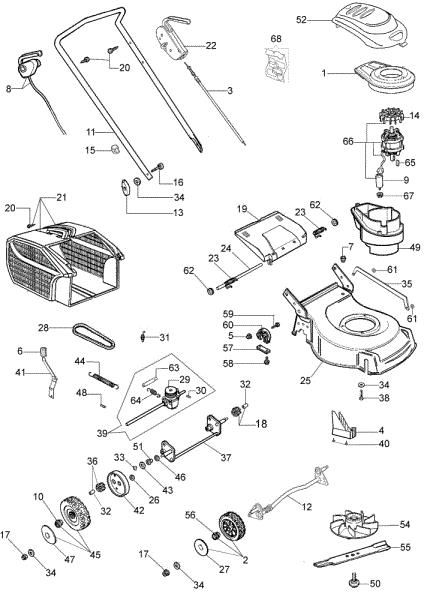

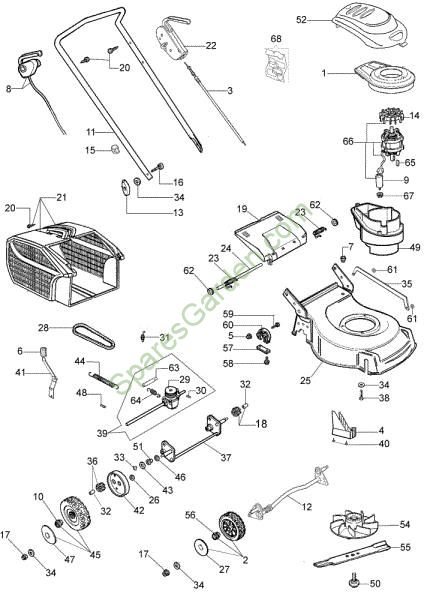

Complete illustrated parts list G 48 TE Electric lawnmower

Complete illustrated parts list G 48 TE Electric lawnmower

Mowers G 48 TE Electric lawnmower Complete illustrated parts list Brand Oleo-Mac
Hersteller: OLEOMAC
In case of spare parts order of G 48 TE Electric lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of G 48 TE Electric lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Guard

Spare Part Guard Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€17,46 inkl. Steuer

2 Wheel kit BT5-035-01/07

Spare Part Wheel kit BT5-035-01/07 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€32,11 inkl. Steuer

3 Traction cable

Spare Part Traction cable Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€23,37 inkl. Steuer

4 Guard

Spare Part Guard Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€22,10 inkl. Steuer

5 Nut

Spare Part Nut Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€1,95 inkl. Steuer

6 Handle

Spare Part Handle Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€5,17 inkl. Steuer

7 Grommet

Spare Part Grommet Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€2,54 inkl. Steuer

8 Switch

Spare Part Switch Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€60,08 inkl. Steuer

9 Condenser 16MF 450V 5

Spare Part Condenser 16MF 450V 5 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€26,57 inkl. Steuer

10 Bearing

Spare Part Bearing Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4
€12,40 inkl. Steuer

12 Axle kit BT5-050-12/08

Spare Part Axle kit BT5-050-12/08 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€54,92 inkl. Steuer

13 Tightening handle

Spare Part Tightening handle Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€8,25 inkl. Steuer

14 Fan

Spare Part Fan Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€24,73 inkl. Steuer

15 Band

Spare Part Band Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€7,86 inkl. Steuer

16 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€3,71 inkl. Steuer

18 Left sprocket SN 6275173850 BT5-079-04/15

Spare Part Left sprocket SN 6275173850 BT5-079-04/15 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€22,11 inkl. Steuer

19 Shutter

Spare Part Shutter Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€32,46 inkl. Steuer

20 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 8
€5,51 inkl. Steuer

21 Complete grassbag

Spare Part Complete grassbag Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€107,25 inkl. Steuer

22 Complete lever

Spare Part Complete lever Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€21,38 inkl. Steuer

23 Kit spring

Spare Part Kit spring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€13,53 inkl. Steuer

24 Deflector axle

Spare Part Deflector axle Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€11,27 inkl. Steuer

25 Deck

Spare Part Deck Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€301,45 inkl. Steuer

26 Washer

Spare Part Washer Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€1,95 inkl. Steuer

27 Wheel cover BT5-035-01/07

Spare Part Wheel cover BT5-035-01/07 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€9,76 inkl. Steuer

28 Belt

Spare Part Belt Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€29,49 inkl. Steuer

29 Pulley

Spare Part Pulley Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€29,34 inkl. Steuer

30 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€4,49 inkl. Steuer

31 Spring

Spare Part Spring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€12,00 inkl. Steuer

32 Bushing SN 6275173850 BT5-079-04/15

Spare Part Bushing SN 6275173850 BT5-079-04/15 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€9,42 inkl. Steuer

33 Snap ring

Spare Part Snap ring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€2,24 inkl. Steuer

34 Washer

Spare Part Washer Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 7
€4,98 inkl. Steuer

35 Rod

Spare Part Rod Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€26,51 inkl. Steuer

36 Right sprocket SN 6275173850 BT5-079-04/15

Spare Part Right sprocket SN 6275173850 BT5-079-04/15 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€22,11 inkl. Steuer

37 Rear axle

Spare Part Rear axle Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€108,59 inkl. Steuer

38 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 3
€6,88 inkl. Steuer

39 Transmission BT5-053-06/09

Spare Part Transmission BT5-053-06/09 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€241,86 inkl. Steuer

40 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€1,81 inkl. Steuer

41 Lever

Spare Part Lever Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€25,39 inkl. Steuer

42 Wheel cover

Spare Part Wheel cover Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€12,57 inkl. Steuer

43 Spacer

Spare Part Spacer Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€1,95 inkl. Steuer

44 Spring

Spare Part Spring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€14,25 inkl. Steuer

45 Wheel kit

Spare Part Wheel kit Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€52,66 inkl. Steuer

46 Ring

Spare Part Ring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€4,93 inkl. Steuer

47 Wheel cover

Spare Part Wheel cover Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€10,97 inkl. Steuer

48 Roller

Spare Part Roller Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€3,61 inkl. Steuer

49 Engine support

Spare Part Engine support Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€44,95 inkl. Steuer

50 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€8,64 inkl. Steuer

51 Bushing

Spare Part Bushing Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€9,27 inkl. Steuer

52 Guard

Spare Part Guard Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€47,63 inkl. Steuer

54 Fan

Spare Part Fan Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€28,64 inkl. Steuer

55 Blade

Spare Part Blade Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€26,40 inkl. Steuer

56 Bearing BT5-035-01/07

Spare Part Bearing BT5-035-01/07 Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4
€12,69 inkl. Steuer

57 Plate

Spare Part Plate Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€6,20 inkl. Steuer

58 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 4
€2,29 inkl. Steuer

59 Screw

Spare Part Screw Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 6
€0,63 inkl. Steuer

60 Support

Spare Part Support Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€9,76 inkl. Steuer

61 Retainer washer

Spare Part Retainer washer Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€5,51 inkl. Steuer

62 Retainer washer

Spare Part Retainer washer Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 2
€1,46 inkl. Steuer

64 Spring

Spare Part Spring Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€12,95 inkl. Steuer

65 Key

Spare Part Key Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€7,81 inkl. Steuer

66 Engine

Spare Part Engine Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€327,04 inkl. Steuer

67 Nut

Spare Part Nut Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€1,95 inkl. Steuer

68 Labels kit

Spare Part Labels kit Complete illustrated parts list Mowers Brand Oleo-Mac Required Quantity: 1
€16,06 inkl. Steuer
