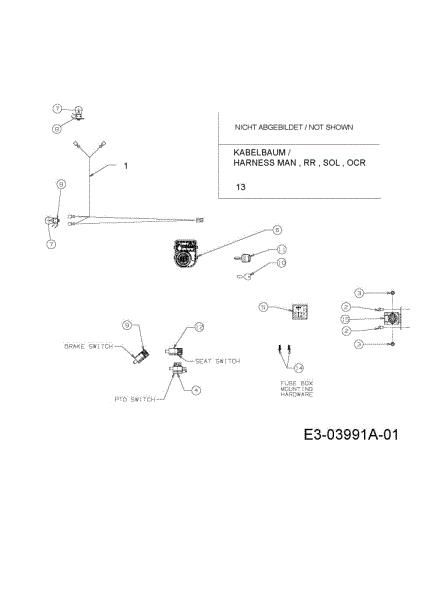

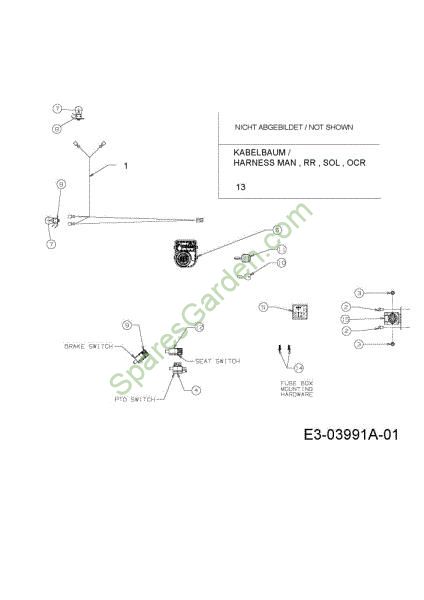

Electric diagram KROSSER PLUS 105/22 H Garden tractor

Electric diagram KROSSER PLUS 105/22 H Garden tractor

Garden tractors KROSSER PLUS 105/22 H Garden tractor Electric diagram Brand Oleo-Mac
Hersteller: OLEOMAC
In case of spare parts order of KROSSER PLUS 105/22 H Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of KROSSER PLUS 105/22 H Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

2 Screw

Spare Part Screw Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€12,40 inkl. Steuer

3 Nut

Spare Part Nut Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€7,91 inkl. Steuer

4 Safety

Spare Part Safety Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€60,81 inkl. Steuer

5 Ammeter

Spare Part Ammeter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€41,02 inkl. Steuer

7 Bulb

Spare Part Bulb Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€18,41 inkl. Steuer

8 Lamp holder

Spare Part Lamp holder Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€17,83 inkl. Steuer

9 Safety

Spare Part Safety Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€51,10 inkl. Steuer

10 Wrench

Spare Part Wrench Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€27,53 inkl. Steuer

11 Wrench

Spare Part Wrench Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€27,53 inkl. Steuer

12 Safety

Spare Part Safety Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€52,81 inkl. Steuer

13 Light wiring

Spare Part Light wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€318,24 inkl. Steuer

15 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€107,63 inkl. Steuer
